Stronger Wood Joints with Series 4070 Mitre Joint Cutter

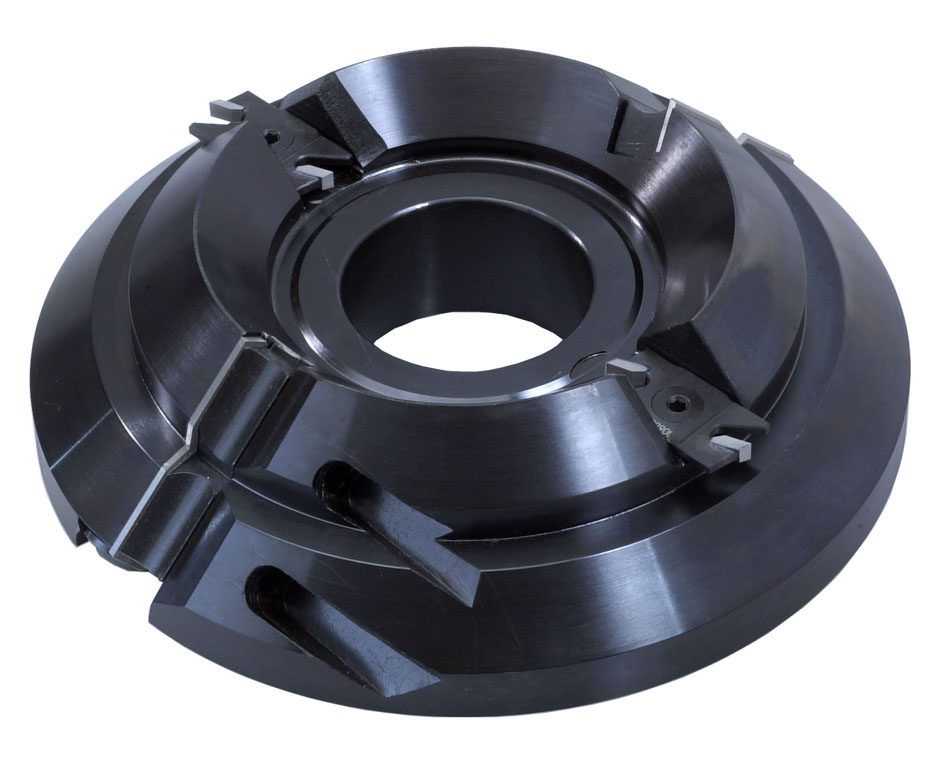

While we all need strong joints to last a lifetime, when it comes to wood, we have a Mitre Joint Cutter for Stronger Joints! GDP Tooling offers the series 4070 insert cutter head for producing accurate and incredibly strong, “Lock” mitre joints. This steel body insert cutter head is specifically designed for use on shapers and may also be used on other machines such as moulders and tenoners.
For shaper applications, the machining process involves two-steps.
1. Run the panel flat to the machine bed
2. Create a counter-profile which is achieved by running the panel vertical, tight to the machine fence
This two-step process together with glue and proper clamping, will create a lasting joint that is far superior to a simple 45 degree joint. This tool offers two replaceable carbide inserts and two serviceable groovers. Designed for machining material thickness of 14 mm (0.55”) to 34 mm (1.34”) and is ideal for solid woods, MDF and composite materials. The GDP 4070 insert cutter head is certainly an invaluable tool for any woodworking shop! For information on this product or related items such as finger or glue jointing, contact GDP Tooling for solutions!
