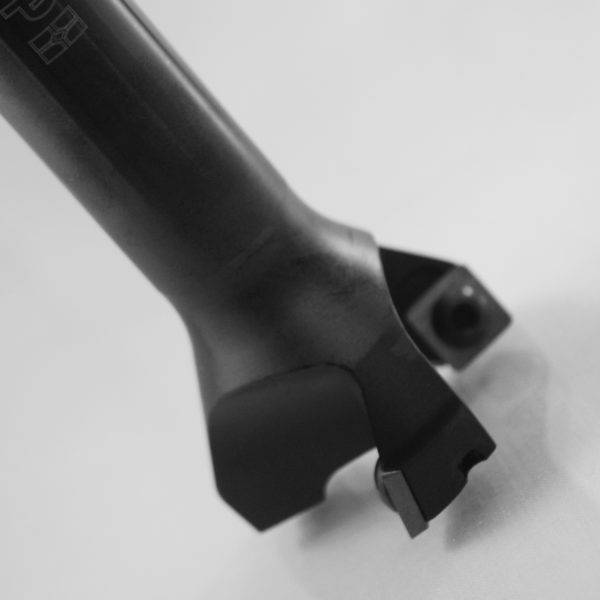

Shaker Door Insert Bit
Shaker Door MDF
Insert Surface Planing Cutter for MDF Shaker Doors and other applications requiring an excellent surface finish
Bottom view of Insert Surface Planing Cutter for MDF Doors
CNC Insert Surface Planing Cutter for MDF Doors

TOOLING FOR SHAKER DOORS

$335.85

3-wing Insert router bit with 9.8mm cutting edge length for planing out pockets for Shaker Style Doors.  No sanding necessary once it’s ran. We highly recommend that the spoilboard cutters are purchased with an HSK Heat Shrink tool holder which provides for best possible finish and tool life.  This is also a cost saving factor over time as routine collet replacement is not required and the improved accuracy of a heat shrink chuck will prolong tool life and improve finish.

Shaker Door MDF

To obtain the above door detail, two additional passes are needed with a 3/8″ and a 1/16″ solid carbide bit.  No sanding needed!

See our product brochure on Cabinet Door Tooling.

Replacement Insert:
Item #4200.098.98

Typical Machining Range:
10,000 RPM
150″/min.
For more information see our
Chip Load Calculator

SKU: N/A Categories: ,

Available Options:

Description

3-wing Insert router bit for planing out pockets for Shaker Style Doors. No sanding necessary once it’s ran. We highly recommend that the spoilboard cutters are purchased with an HSK Heat Shrink tool holder which provides for best possible finish and tool life. This is also a cost saving factor over time as routine collet replacement is not required and the improved accuracy of a heat shrink chuck will prolong tool life and improve finish.

Replacement Insert knives:
Item# 4200.098.98



Typical Machining Range:
16,000-18,000 RPM
150″/min.
For more information see our
Chip Load Calculator

Additional information

D

L2

Z

Shank

3/4"
