Custom PCD tools for CNC machining are shank-type cutting tools engineered around a specific material, profile, machine and machining operation. They are typically used when a standard router bit cannot provide the required geometry, finish, productivity or tool life.
Custom PCD Tools for CNC Machining
In stock
Call for Price
- Performance Guarantee
- Price Match Promise
Custom PCD tools for CNC machining are engineered for applications where a standard router bit cannot provide the required profile, geometry, finish or tool life. These custom shank-type tools are designed around the specific material, machine, cutting parameters and finished-part requirements.

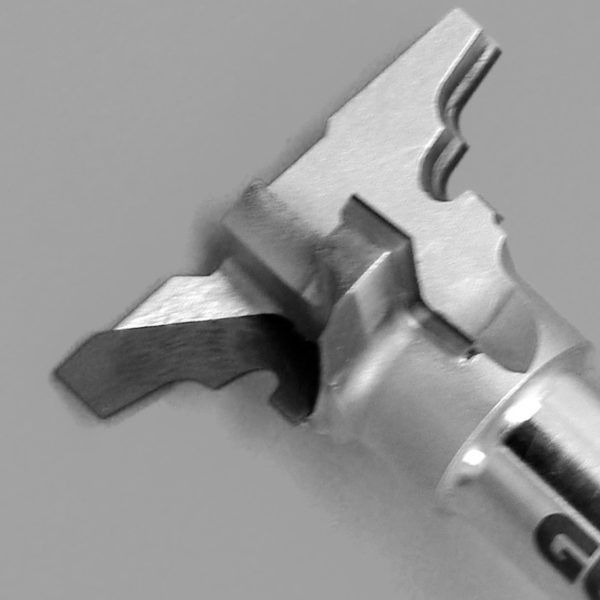

PCD cutting edges provide exceptional wear resistance and extended tool life when machining abrasive wood-based panels, laminates and other demanding materials. Custom designs can incorporate specialized profiles, unusual cutting dimensions, multiple cutting diameters or combination geometries to solve specific production challenges.
GDP Tooling works with customers to develop the appropriate tool geometry, PCD grade and tool-body design for the application. Tools can be developed from a dimensioned drawing, CAD file, sample part or finished-profile requirements.
With over 40 years of industrial tooling experience, we support custom tooling from initial concept and design through manufacturing, sharpening and ongoing service.
Have a Question?
Ask about this product
Custom PCD Tools for CNC Machining
Product FAQs
A custom tool may be appropriate when you need a special profile, unusual cutting diameter or length, extended tool life, specialized cutting geometry or multiple cutting operations incorporated into a single tool.
Useful information includes the material being machined, required profile or operation, machine and spindle specifications, shank size, RPM, feed rate, depth of cut, production volume and desired finish. A dimensioned drawing, CAD file or sample part is particularly helpful.
Yes. GDP Tooling can develop custom PCD tooling from a dimensioned drawing, CAD file, sample part or detailed finished-profile requirements. A tool design drawing is provided for review and approval before manufacturing.
Yes. Depending on the application, multiple diameters, profiles or cutting operations can often be incorporated into a single custom PCD shank tool. This can reduce tool changes and machining time while improving production consistency.
PCD is particularly effective for abrasive materials such as MDF, particleboard, laminates and other wood-based panels. The appropriate PCD grade and cutting geometry depend on the specific material and machining operation.
PCD offers exceptional wear resistance and can provide substantially longer tool life than carbide in suitable abrasive-material applications. Longer operating intervals between tool changes can reduce downtime and improve production consistency. In addition, a PCD custom tool is quite often barely more than the equivalent carbide tool.
Yes. Most custom PCD tools can be professionally sharpened and serviced multiple times, depending on the tool design, condition and remaining diamond. Proper servicing can significantly extend the useful life of the tool.
Custom PCD tools for CNC machining provide an application-specific solution when standard router tooling cannot efficiently achieve the required profile, finish, productivity or tool life.
These custom shank-type tools can be engineered for profiling, trimming, grooving, routing, jointing and combination machining operations. Designs can incorporate specialized profiles, multiple cutting diameters, unusual cutting lengths or several machining functions within a single tool.
PCD is particularly effective when machining abrasive materials where conventional carbide experiences rapid cutting-edge wear. Properly applied PCD tooling can provide significantly longer operating intervals between tool changes and sharpenings, helping reduce machine downtime and maintain consistent production quality.
Designed Around Your Machining Requirements
Successful custom tooling begins with the complete application. GDP Tooling considers the material, required profile, machine and spindle, shank size, RPM, feed rate, depth of cut, production volume and required finish when developing the tool.
The PCD grade, cutting geometry and tool-body design can then be selected specifically for those requirements rather than adapting the application to an existing standard tool.
GDP Tooling can develop custom tooling from a dimensioned drawing, CAD file, sample part or finished-profile requirements. A tool design drawing is provided for customer review and approval prior to manufacturing.
Custom PCD tools can also be professionally sharpened and serviced, extending their useful life and helping reduce overall tooling cost.
