Carbide Insert Knives & Replacement Cutting Inserts
GDP Tooling supplies precision solid carbide insert knives for CNC router bits, cutterheads, moulders, tenoners, shapers, and edgebanders. Our selection includes 2-sided and 4-sided reversible carbide inserts, square insert knives, grooved inserts, edgebander replacement knives, and specialized profile inserts for LRH and other insert tooling systems.
In addition to standard replacement inserts, GDP Tooling manufactures custom carbide insert knives in-house, including precision-ground profiles and replacement knives for older or discontinued tooling. Available in carbide grades suited to solid wood, MDF, particleboard, laminates, and abrasive composite materials, our inserts provide accurate, repeatable cutting performance. Browse the categories below or contact us for help identifying a replacement knife.
-
2-Sided Carbide Insert Knives (3)
-
4-Sided Carbide Inserts (2)
-
Carbide Insert Knives With Groove (1)
-
Edgebander Carbide Insert Knives (8)
-
LRH Replacement Carbide Insert Knives (3)
-
Square Carbide Insert Knives (3)
Precision Carbide Insert Knives for Industrial Woodworking
Solid carbide insert knives are replaceable cutting edges used in CNC router tooling, cutterheads, moulders, tenoners, shapers, and edgebanders. Designed for accurate, repeatable machining, these inserts allow worn cutting edges to be indexed or replaced without replacing the complete cutting tool.
GDP Tooling supplies standard and custom-manufactured carbide insert knives for industrial woodworking and panel processing. Our selection includes rectangular and square inserts, reversible knives with two or four cutting edges, grooved inserts, edgebander knives, and precision-ground profile inserts.
Available in different carbide grades and cutting geometries, these replacement knives are used for jointing, rebating, trimming, beveling, profiling, planing, grooving, and other machining operations.
2-Sided Reversible Carbide Insert Knives
Two-sided carbide insert knives provide two usable cutting edges, allowing the insert to be reversed when the first edge becomes worn.
GDP Tooling offers rectangular two-sided inserts with single-hole and two-hole mounting configurations, as well as replacement inserts for specialized router tooling.
These knives are used in compatible cutterheads and router bits for straight cutting, trimming, jointing, and other woodworking applications.
Correct insert length, width, thickness, mounting hole configuration, and cutting-edge geometry are essential for proper fit and safe operation.

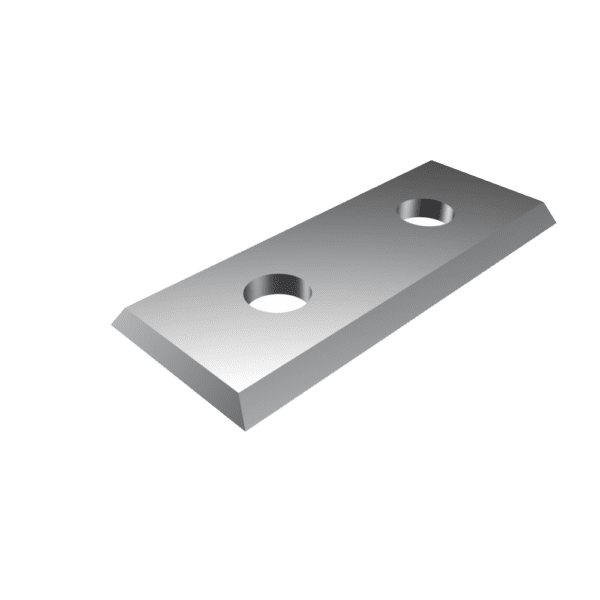

4-Sided Carbide Insert Knives
Four-sided carbide insert knives provide four indexable cutting edges, allowing manufacturers to rotate the insert to expose a fresh edge as wear occurs.
GDP Tooling supplies four-sided replacement carbide inserts in single-hole and two-hole configurations for compatible cutterheads and router tooling.
These inserts offer an economical solution for repetitive machining operations because multiple cutting edges can be used before the insert requires replacement.
Four-sided inserts are commonly used for straight cutting, jointing, rebating, surfacing, and other operations where the cutter body is designed for indexable knives.
Square Carbide Insert Knives
Square carbide inserts are commonly used in indexable cutterheads and other woodworking tools where compact, multi-edge cutting inserts are required.
Their geometry allows multiple cutting edges to be used, depending on the insert design and cutter body.
GDP Tooling offers precision square carbide insert knives in different sizes and configurations for compatible industrial woodworking applications.
When ordering replacement square inserts, verify the exact dimensions, thickness, corner geometry, mounting hole, and cutting-edge specifications.

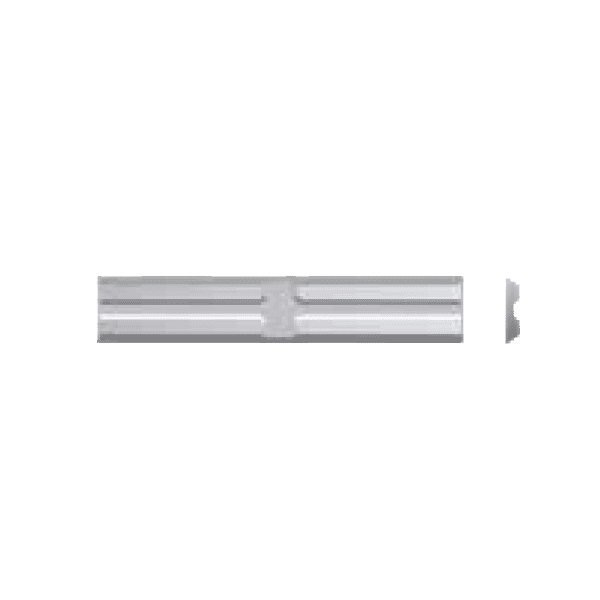

Carbide Insert Knives With Grooves
Some precision router tooling uses carbide inserts with a groove-and-cross-groove mounting arrangement rather than conventional mounting holes.
GDP Tooling supplies rectangular four-sided carbide insert knives featuring a longitudinal groove and cross-groove on the back of the insert.
These inserts feature a 35-degree edge bevel and are used in compatible tooling for straight cutting applications such as jointing, rebating, beveling, and trimming.
Because grooved inserts rely on a specific locating and clamping arrangement, replacement knives must match the original insert geometry and dimensions.

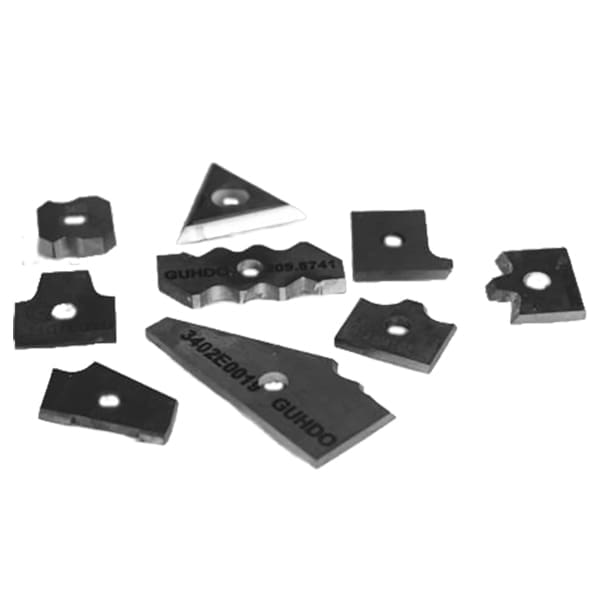

Replacement Carbide Insert Knives for Edgebanders
Edgebanding machines use specialized carbide insert knives for trimming, profiling, scraping, and other operations involved in producing finished panel edges.
GDP Tooling supplies replacement carbide inserts for compatible edgebanding equipment, including selected machine-specific configurations.
These knives are used in machining applications involving PVC, ABS, wood veneer, and other suitable edgebanding materials.
Replacement insert selection should be based on the machine model, cutterhead or tool identification, knife dimensions, cutting profile, and mounting arrangement.
For inserts that are difficult to identify, GDP Tooling can assist with matching an existing knife or evaluating a sample.

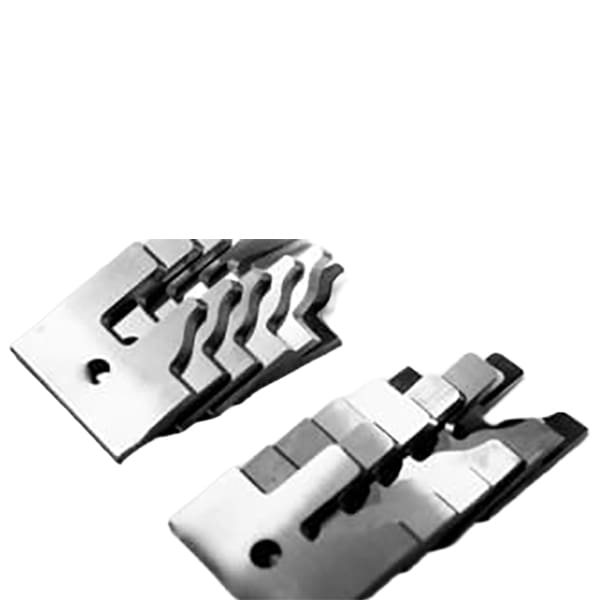

LRH Replacement Carbide Insert Knives
GDP Tooling supplies specialized replacement carbide insert knives for LRH profile tooling, including cope-and-stick, tongue-and-groove, and raised-panel cutter applications.
These profile knives are precision-ground to reproduce the cutting geometry required by compatible cutterheads.
Maintaining the correct cutting profile is essential for producing consistent joints, accurately matched components, and repeatable finished dimensions.
Replacement inserts are particularly valuable for established production tooling where replacing the entire cutterhead would be unnecessary or expensive.
Custom Carbide Insert Knife Manufacturing
Not every replacement carbide insert knife is available as a standard catalog item.
GDP Tooling offers in-house manufacturing of precision solid carbide replacement knives for profile tooling used on CNC routers, moulders, tenoners, shapers, and edgebanders.
Our custom manufacturing capabilities include replacement knives for older and discontinued tooling systems, including LRH, DeHart, and other compatible cutter designs.
Using an existing knife, technical drawing, or suitable sample, our team can evaluate the required cutting profile, dimensions, mounting geometry, and carbide grade.
This service helps manufacturers maintain existing tooling investments rather than replace complete cutterheads when replacement knives become unavailable.
Custom manufacturing is subject to technical feasibility and applicable intellectual property restrictions.
Choosing the Right Carbide Grade
The carbide grade can significantly influence insert knife performance and tool life.
Solid wood machining, abrasive engineered panels, laminates, and composite materials can place different demands on cutting edges.
Selecting the appropriate carbide grade involves balancing wear resistance, cutting-edge toughness, and the requirements of the application.
GDP Tooling can assist in selecting suitable carbide grades for the material being machined, particularly when manufacturing custom replacement inserts.
How to Identify the Correct Replacement Carbide Insert
Carbide insert knives are not interchangeable simply because they appear similar.
When selecting a replacement knife, verify:
- Overall length, width, and thickness
- Number of usable cutting edges
- Mounting hole diameter, position, and quantity
- Groove or locating features
- Cutting-edge bevel and profile geometry
- Carbide grade and intended workpiece material
- Cutterhead manufacturer and tool identification
For profiled inserts, even small dimensional differences can affect the finished workpiece geometry.
Where possible, provide the original knife part number, a dimensioned drawing, or a sample for identification.
Replacement Inserts vs. Complete Cutterhead Replacement
Indexable carbide tooling offers an important economic advantage: worn cutting edges can be replaced while the precision cutter body remains in service.
For manufacturers operating multiple CNC machines, moulders, or edgebanders, maintaining an inventory of correctly matched replacement inserts can reduce downtime and simplify tooling maintenance.
When replacement knives are no longer commercially available, custom manufacturing may allow an existing cutterhead to remain productive for years.
Technical Assistance & Custom Insert Knife Quotes
GDP Tooling supplies standard replacement carbide insert knives and manufactures specialized profiles for industrial woodworking applications.
Whether you need a common two-sided or four-sided insert, a replacement edgebander knife, or a custom profile insert for discontinued tooling, our team can assist with identification and selection.
Contact GDP Tooling with your insert dimensions, existing part number, tooling manufacturer, or sample to request assistance or a quotation.
