Description
Series 6380 – For HSK-F 63 and ISO/SK 30 Machine Connections

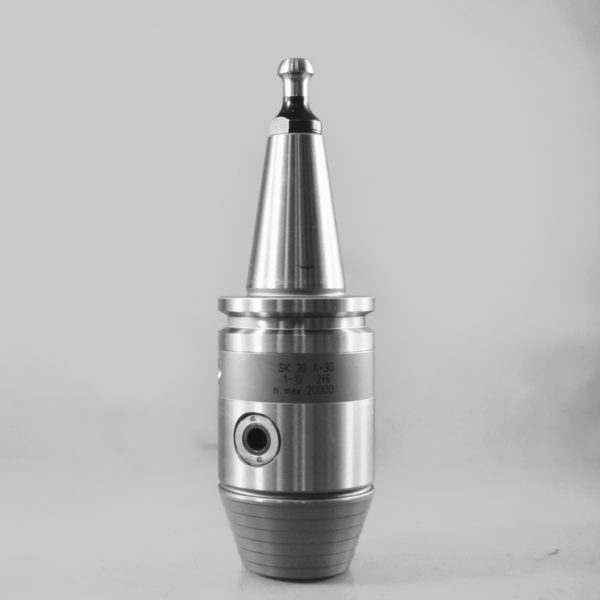

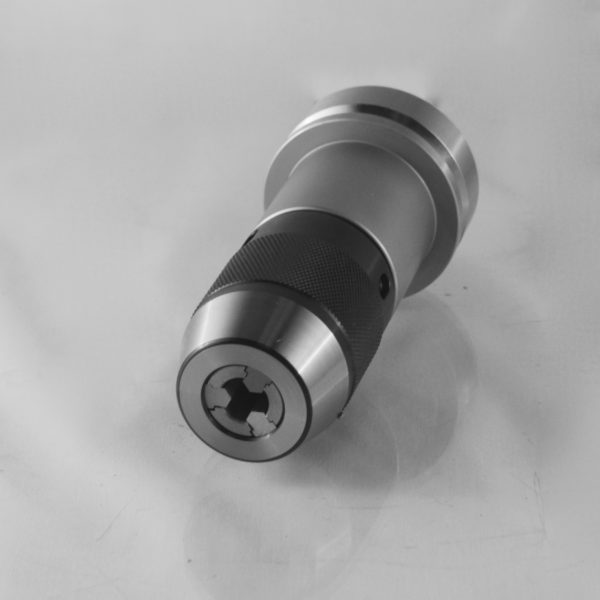

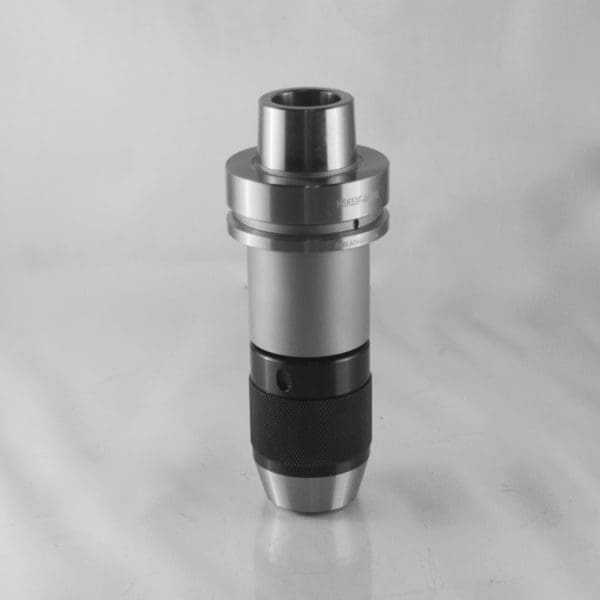

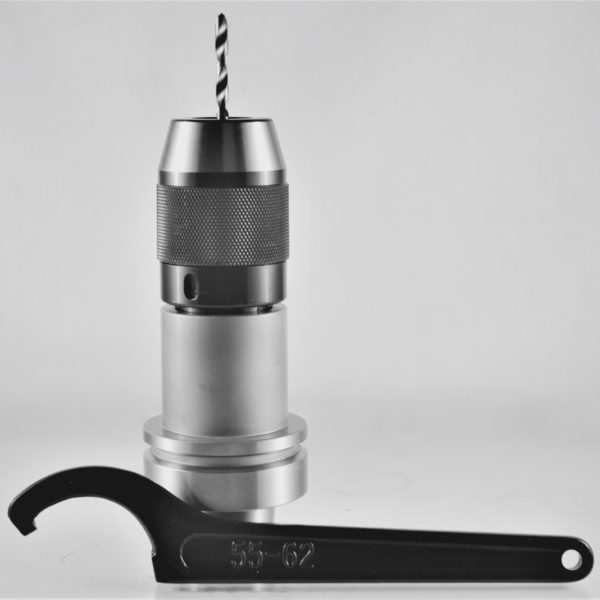

The Universal CNC Boring Chuck is designed to clamp drill and boring bits with high clamping power and accuracy. This drill adapter utilizes a Jacobs chuck clamping system, offering superior concentricity with a maximum runout tolerance of 0.02mm (.0008″) at a 35mm drill length, extending from the output. Drill bits with a flat on the shank are clamped accurately and tightly provided the flat portion of the shank is positioned between 2 of the 3 clamping jaws. A minimum clamping depth into the adapter of 20mm is required. The maximum RPM for this Universal Drill Adapter is 20,000 RPM. This precision drill adapter can be used for RH or LH rotation tools and it’s comes in a range for either 1 to 13mm or 3 to 16mm, depending on requirements. Available for both HSK-F 63 and SK/ISO machine interface.
