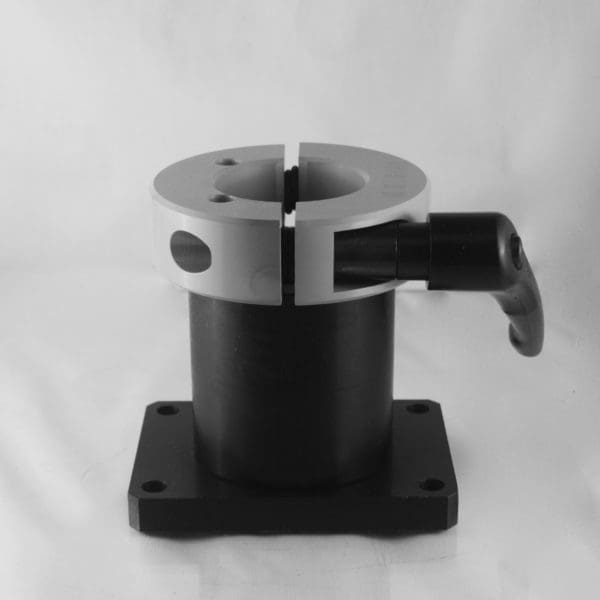

Basic Tool setup Fixture for HSK tool holders
Tool Setup Fixture for HSK Tool Holders
Tool Setup Fixture for HSK or ISO Tool Holders

TOOL SETUP FIXTURES

$324.25$527.95

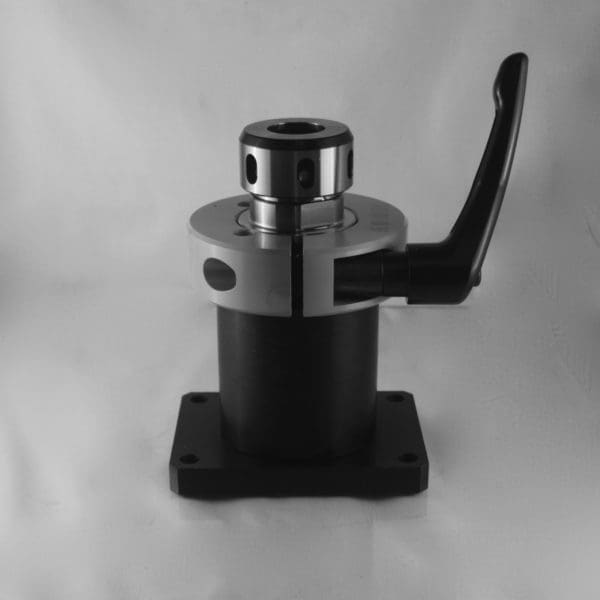

Make tool setup a snap! Tool setup fixtures clamp HSK of ISO tool holders for accurate tool set-up and makes awkward tool handling  a thing of the past. When firmly secured to a work bench,  the set up fixture accepts the tool holder and offers a safe and effective way to check and tighten the tool into the tool holder using a torque wrench.   This insures secure tool assembly without over-tightening the collet nut.  A ball bearing in the setup fixture locks the toolholder in position so the collet nut can be tightened without movement.  Proper setup eliminates test cuts as well as wasted time and material.

The “PLUS” version setup fixture (6355.630.00) can be accessorized with height and diameter gauges to create a complete measuring system.  (sold separately)

Setup fixtures are also available for HSK-E 40, SK30 / HSK-F 50 / HSK-E 50, SK40 / BT40, SK30 with serrated collar (Morbidelli), ISO30 / BT30 and HSK-W 85 (Weinig) on request.

SKU: N/A Category:

Available Options:

Description

Make tool setup a snap! Tool setup fixtures clamp HSK or ISO tool holders for accurate tool set-up and makes awkward handling a thing of the past. When firmly secured to a work bench, the set up fixture offers a safe and effective way to check and prepare your tooling before it is put into the machine, reducing test cuts and wasted time and material. This set up fixture can be accessorized with height and diameter gauges, and a torque wrench to create a complete measuring system.

Setup fixtures are also available for HSK-E 40, SK30 / HSK-F 50 / HSK-E 50, SK40 / BT40, SK30 with serrated collar (Morbidelli), ISO30 / BT30 and HSK-W 85 (Weinig) on request.

Additional information

Version

Basic, Plus

Interface

HSK 63 F
