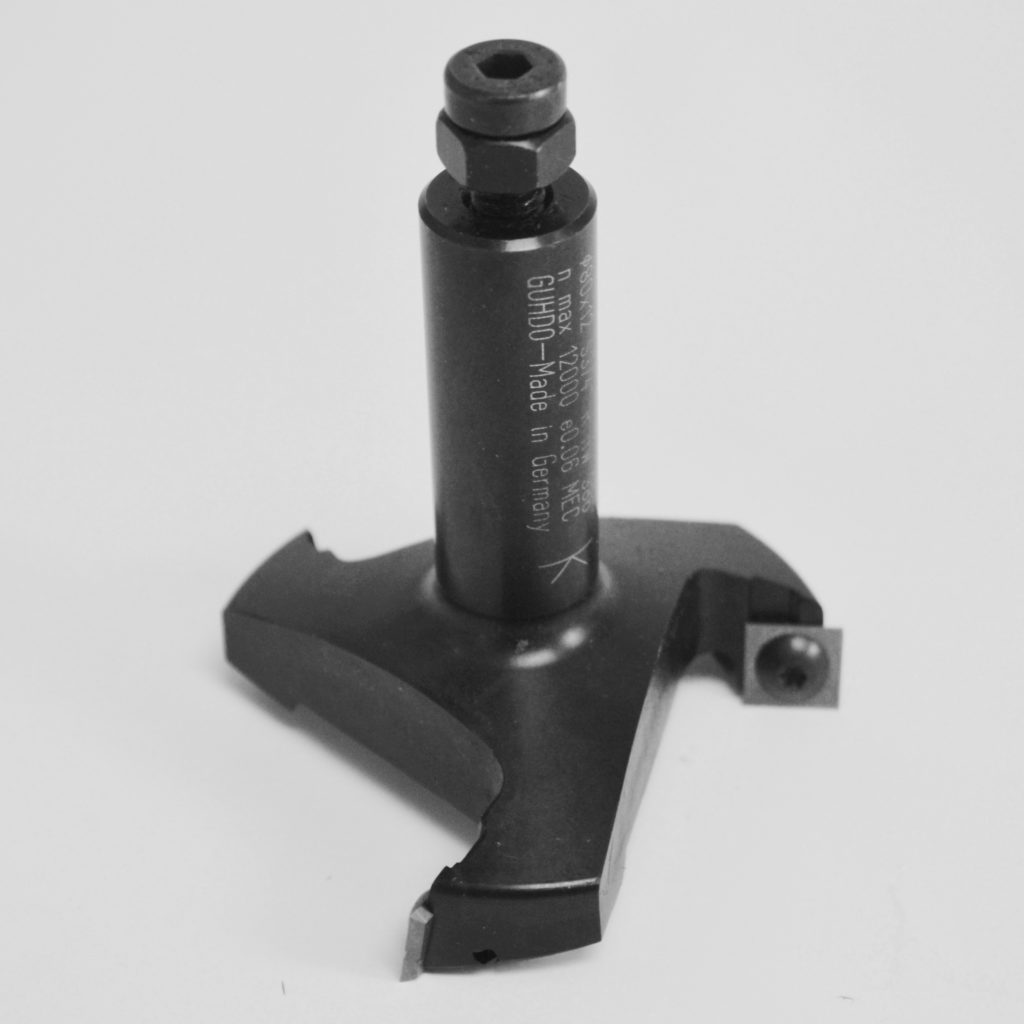

GDP introduces FOURCUT, a surfacing planer for use on CNC routers when the spoilboard cutter finish isn’t quite good enough! While most flat table machines typically have a surface planing cutter to clean up their spoilboard, they are not specifically designed for demanding applications where a superior line free finish is required. FOURCUT was developed to offer a high quality, line free finish on composite and solid materials.

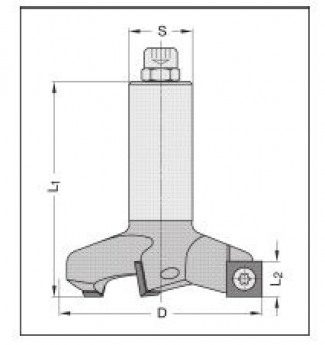

The tool body is manufactured using high quality steel and offers diameters of 80 mm (3.15”) and 150 mm (5.90”). The 80 mm diameter offers three knives in an up shear position. This tool is ideal for smaller parts such as solid wood or MDF doors. The 150 mm diameter offers six knives in a down shear position. This larger tool is great for surface planing larger areas to reduce the number of passes. It’s not only suitable for wood and wood composite products, but can also be used on Thermo- and Duroplastics.
The inserts are 4-sided with our special FOURCUT grind to improve finish quality and tool life. What makes this tool truly unique are the choices of knives available. The 4-sided knives are available in solid carbide and in PCD (polycrystalline diamond) for high volume and very abrasive materials. When using this tool, we recommend mounting to one of our high precision heat shrink chucks. For those who require performance and high quality, the FOURCUT is the only choice!
For more information, please see additional details on our website.
