CNC Spoilboard/Fly Cutter-Replaceable Insert Bit

CNC Spoilboard Cutter for Fast, Accurate Table Resurfacing

A properly maintained spoilboard is fundamental to accurate CNC machining. As router bits repeatedly penetrate the spoilboard during production, the surface gradually develops grooves, low spots and other irregularities. If these are allowed to accumulate, the table may no longer provide uniform support or consistent vacuum hold-down across the workpiece.

The GDP Series 6246 CNC Spoilboard / Fly Cutter provides an efficient way to periodically resurface the spoilboard and restore a clean, flat working surface.

Designed for use on CNC routers and point-to-point machines, this industrial 3-wing insert cutter combines a large cutting diameter with replaceable carbide inserts for efficient spoilboard resurfacing, surface planing and related machining applications.

Why Spoilboard Resurfacing Matters

On CNC routers equipped with vacuum tables, the spoilboard serves several important functions. It supports the workpiece, protects the machine table and allows the cutting tool to machine completely through the material without contacting the machine bed.

For through-cutting operations, the router bit typically extends slightly beyond the workpiece and into the spoilboard. Over time, these machining operations leave the spoilboard increasingly uneven.

Periodic resurfacing helps restore:

• A flat and consistent CNC working surface
• More uniform workpiece support
• Reliable vacuum hold-down
• Consistent cutting depth
• Improved machining accuracy
• Predictable production results

Rather than replacing an otherwise usable MDF spoilboard, resurfacing removes a small amount of material from the entire surface and restores the flat working plane.

Large-Diameter Cutting for Efficient Resurfacing

Resurfacing a full-size CNC table with a conventional router bit would require numerous passes and considerable machining time.

The Series 6246 is specifically designed for this application and is available in 45mm, 80mm and 100mm cutting diameters. The larger cutting diameter allows significantly more surface area to be machined with each pass, reducing the number of passes required to surface the CNC table.

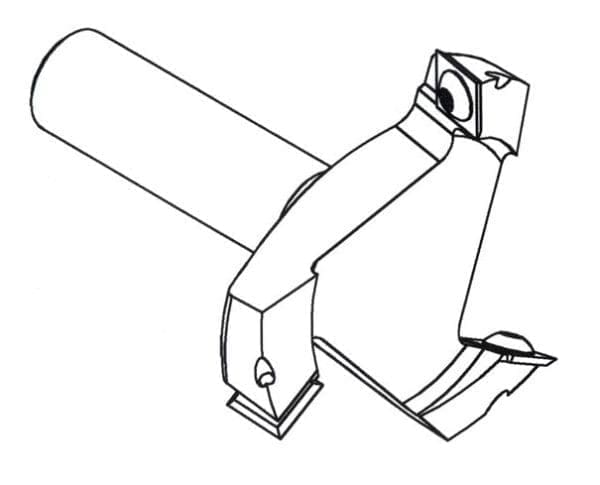

The cutter features a 3-wing design with replaceable carbide inserts, providing three cutting edges around the cutter body for efficient material removal.

Replaceable Carbide Insert Design

Unlike conventional brazed or solid carbide tooling that must eventually be removed for sharpening or replaced, Series 6246 uses replaceable carbide inserts.

When the cutting edges become worn, the inserts can simply be replaced rather than replacing the complete cutter body.

This provides several advantages for production environments:

• Lower long-term tooling costs
• Reduced machine downtime
• No need to send the complete cutter out for sharpening
• Consistent cutting geometry after insert replacement
• Easy maintenance
• Long service life from the precision cutter body

Replacement inserts are readily available from GDP Tooling.

More Than a Spoilboard Cutter

Although designed primarily for CNC spoilboard resurfacing, Series 6246 can also be used for planing and surfacing applications involving suitable wood-based materials.

The cutter’s up-shear cutting geometry makes it suitable for machining:

• MDF spoilboards
• MDF and engineered wood products
• Wood composites
• Solid wood
• Similar wood-based materials

For applications where an exceptionally smooth, line-free finished surface is required on the actual finished workpiece, GDP Tooling also offers dedicated high-finish CNC surfacing cutters.

Available Sizes

The Series 6246 is offered in three cutting diameters to accommodate different CNC machines and surfacing requirements:

45mm diameter
3-wing design with 1/2″ shank

80mm diameter
3-wing design with 3/4″ shank

100mm diameter
3-wing design with 25mm shank and supplied complete with an HSK63F heat shrink tool holder

All three sizes use replaceable carbide inserts.

Why We Recommend an HSK Heat Shrink Holder

A large-diameter fly cutter places greater importance on accurate tool holding. Even small amounts of runout can affect surface finish, cutting consistency and insert life.

For this reason, GDP Tooling highly recommends mounting the Series 6246 spoilboard cutter in an HSK heat shrink tool holder whenever the machine configuration allows it.

Heat shrink technology provides excellent concentricity and a rigid connection between the cutter and tool holder. Improved accuracy can contribute to:

• Better surface finish
• More consistent cutting
• Reduced vibration
• Improved insert life
• Longer overall tool life
• Reduced dependence on routine collet replacement

The 100mm Series 6246 cutter is supplied mounted in an HSK63F heat shrink tool holder as a complete assembly.

Choosing the Right Spoilboard Cutter

For smaller CNC machines or localized surfacing operations, the 45mm cutter provides a compact solution.

For larger CNC routers and production tables, the 80mm and 100mm cutters cover substantially more surface area with each pass and can reduce overall resurfacing time.

When selecting a cutter, consider the CNC machine, spindle specifications, tool holder, spoilboard dimensions and desired resurfacing productivity.

Not sure which size is best for your CNC router? GDP Tooling’s application specialists can help match the cutter, tool holder and operating parameters to your machine and application.
