Description

PCD Diamond Router Bit for Cement Fiber Board and Abrasive Composites

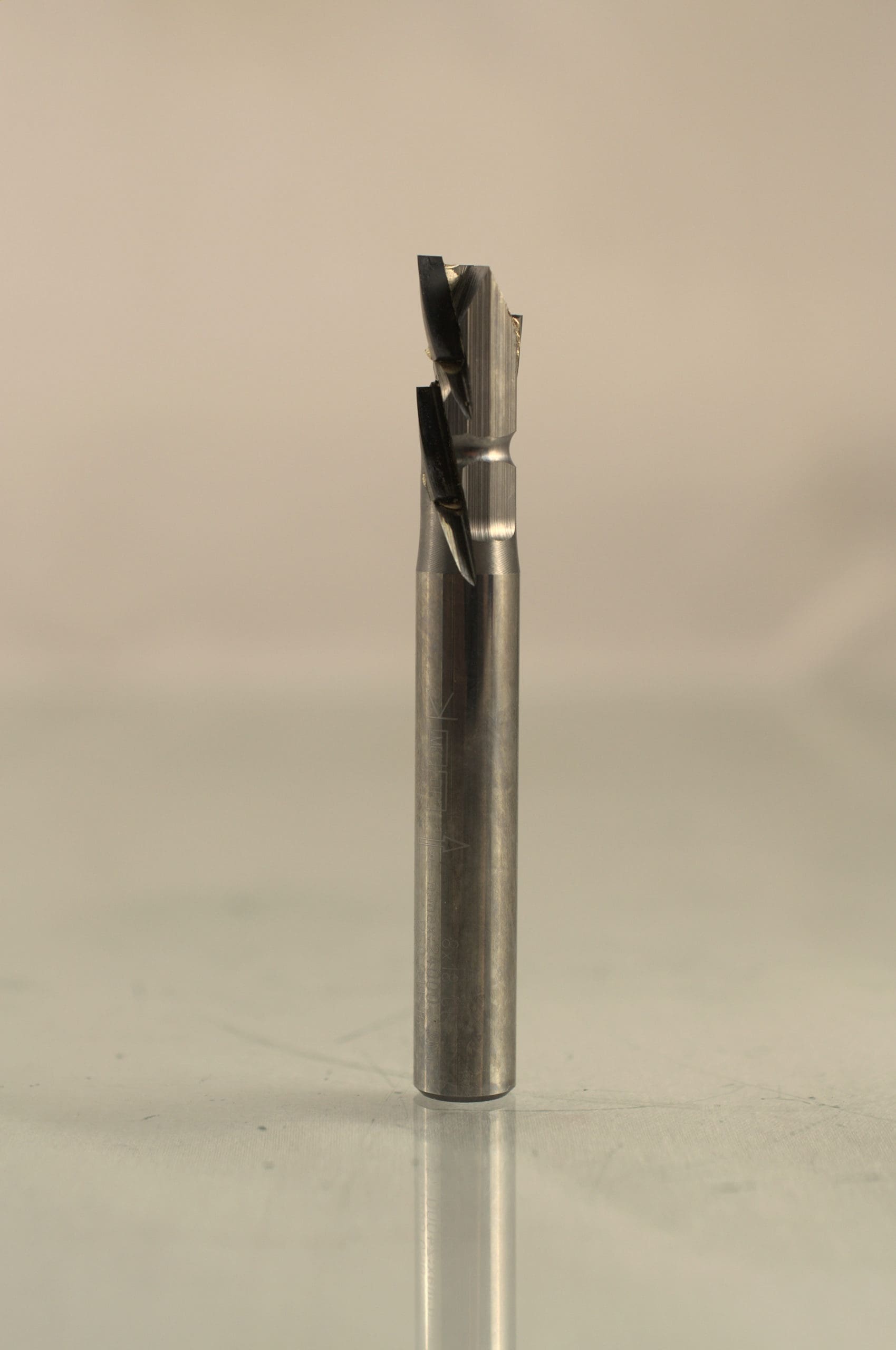

The 6815 Series PCD Diamond Router Bit from GDP Tooling is engineered for high-performance CNC routing of abrasive, dense, and difficult-to-machine materials. Designed with alternating shear polycrystalline diamond (PCD) cutting edges and a solid carbide body, this tool delivers exceptional durability, superior edge quality, and quiet, stable cutting performance across a wide range of industrial materials.

While optimized for cement fiber board applications—including Swisspearl® and other fiber-reinforced cement panels—the 6815 Series is equally effective on MDF, HDF, HPL, CPL, Trespa®, Corian®, thermoplastics, phenolics, duroplastics, and carbon or glass fiber-reinforced composites.

Alternating Shear PCD Geometry for Clean Top and Bottom Edges

The 6815 Series features two long PCD cutting edges positioned on opposite shear angles—one upcut flute and one downcut flute. This alternating shear geometry is specifically designed to reduce top and bottom edge chipping, improve surface finish on laminated and pre-finished materials and minimize delamination in fiber-reinforced composites. All while optimizing Chip evacuation and reducing a buildup of heat in the substrate.This design is especially beneficial when machining coated or laminated panels where both surface integrity and dimensional accuracy are critical.

Engineered for Abrasive and Difficult-to-Machine Materials

The 6815 Series cutting geometry is specifically developed for abrasive and challenging materials, including:

• Cement fiber board

• Swisspearl® panels

• MDF and HDF

• HPL and CPL laminates

• Trespa® high-pressure panels

• Corian® and solid surface materials

• Thermoplastics and duroplastics

• Carbon fiber composites

• Glass fiber-reinforced composites

• Particleboard and solid wood

Solid Carbide Body for Stability and Quiet Operation

Built on a rigid solid carbide body, the 6815 Series provides superior accuracy and vibration resistance during high-speed routing. The combination of solid carbide construction and balanced alternating shear geometry results in quiet running performance, reduced runout, lower heat generation and a extremely high quality finished cut. All while extending tool life and protecting your spindle.

Extended Tool Life and Lower Cost Per Part

Polycrystalline diamond (PCD) cutting edges provide dramatically improved wear resistance compared to conventional solid carbide router bits when machining abrasive materials. This ensures that these tools will have a significantly longer tool life all while keeping a high quality finished cut through the extended tool life. Cut your tool change downtime down drastically and well as your cost per bit. This makes the 6815 series an ideal bit for high volume projects where typical solid carbide just won’t cut it!

Serviceable and Resharpenable PCD Tooling

Unlike disposable carbide tools, the 6815 Series PCD diamond router bit can be serviced and resharpened. This extends the total usable life of the tool and ensures that you are getting the lowest cost per linear foot machined. Let GDP Tooling sharpen and service your PCD bits! Our quality guarantee and quick turnaround time ensures continued high quality machining time after time.
