Insert Engraving Bits (Replaceable Tip) For Use On CNC Machines

Series 4319

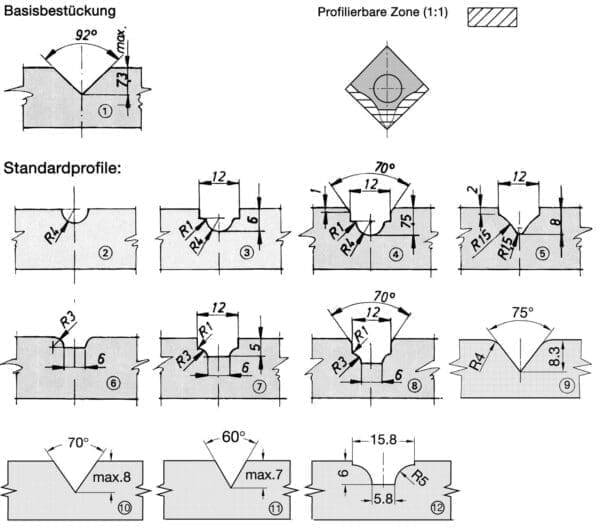

A multi-use decorative insert router bit designed for versatility in grooving, lettering, round-over and engraving.  As a standard, this tool is supplied with a basic Profile 1 insert, but offers a selection of some additional standard profiles (2-12, see gallery images), and can also be customized with profiles that fit within the profiling parameters of the insert blank (shown left right). Great tool for inside edge bevel on MDF shaker doors.

Replacement Parts:
Item# 4200.012.00 (V-Groove)
Item# 4319.012.02 (Profile 2,3 and 4)
Item# 4319.012.05 (Profile 5)
Item# 4319.012.06 (Profile 6,7 and 8)
Item# 4319.012.09 (Profile 9) Item# 4319.012.10 (Profile 10)
Item# 4319.012.11 (Profile 11)
Item# 4319.012.12 (Profile 12)

Item# 39081-0-04048-R Torx Screw
Item# 39077-0-04015-1. Torx key

Typical Machining Range:
16,000-18,000 RPM
120-200″/min.
For more information see our
Chip Load Calculator
