Yes. Ballnose router bits are widely used for 3D CNC carving because the rounded cutting edge can follow changes in surface height and direction while producing a smooth, contoured finish. Smaller ballnose diameters generally allow greater detail, while larger diameters can machine larger areas more efficiently.
Fluting Insert Router Bit for Cove & Round-Bottom Grooves
In stock
Price range: $68.00 through $266.00
- Performance Guarantee
- Price Match Promise
The fluting insert router bit Series 4096 is an economical replaceable-insert solution for CNC fluting, cove cutting and machining round-bottom grooves in wood, MDF and solid-surface materials. Its radiused carbide cutting edge produces smooth concave profiles and can also be used for machining uneven surfaces while minimizing visible tool-transition marks.
Unlike a solid carbide ballnose bit, the replaceable carbide insert can be rotated to expose a fresh cutting edge when the first edge becomes worn. This extends usable insert life while maintaining the original cutting diameter and radius without repeatedly sharpening the complete tool.
Replacement inserts, screws and Torx keys are available separately.
Typical Machining Range:
16,000-18,000 RPM
120-200″/min.
For more information see our
Chip Load Calculator
Have a Question?
Ask about this product
Fluting Insert Router Bit for Cove & Round-Bottom Grooves
Product FAQs
Yes, although the optimum tool may differ for each operation. A larger or more aggressive tool is often used for roughing to remove material efficiently, followed by a smaller ballnose bit for the final finishing pass. This can reduce machining time while still producing a detailed, smooth surface.
Consider the material being machined, required radius or detail, cutting depth, desired surface finish, machine type, spindle speed and feed rate. GDP Tooling can help recommend the appropriate ballnose geometry and cutting parameters for your CNC application.
Surface finish is affected by tool diameter, stepover, feed rate, spindle speed, tool sharpness and machine rigidity. Reducing the stepover between passes generally produces a smoother finished surface, although it also increases machining time.
A ballnose router bit has a rounded cutting tip that is designed to machine curved surfaces, contours and three-dimensional profiles. Ballnose bits are commonly used for 3D carving, mold and pattern work, sculpted surfaces, radius cuts and finish machining on CNC routers and machining centers.
A flat-end bit produces a flat-bottom cut and is typically used for profiling, pocketing and general material removal. A ballnose bit has a rounded cutting end that follows curved and contoured surfaces more smoothly, making it better suited for 3D machining and finishing complex shapes.
Depending on the tool geometry, solid carbide ballnose bits can be used to machine solid wood, MDF, plywood, plastics, composites, fiberglass and certain non-ferrous materials. The correct flute geometry and cutting parameters should always be matched to the specific material.
The best diameter depends on the size and detail of the part, required surface finish, machining depth and desired production speed. That said, there are minimum diameters required for an insert tool of about 20mm. Smaller-diameter ballnose bits are useful for fine detail and tight contours, while larger tools can remove material more efficiently and reduce machining time on broader surfaces.
The fluting insert router bit Series 4096 is designed for machining flutes, coves and round-bottom grooves while providing the economy and convenience of replaceable carbide cutting edges.

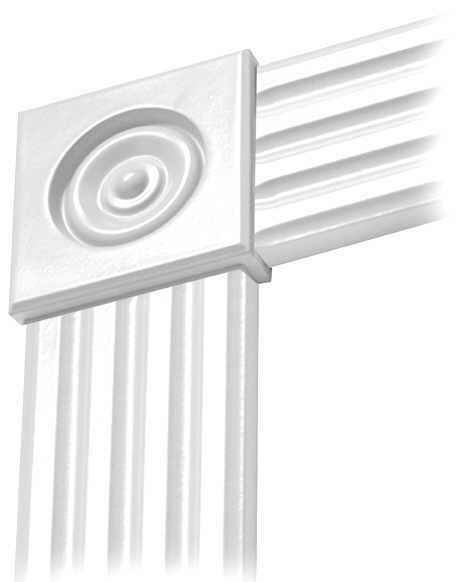

The radiused cutting geometry makes this tool particularly useful for architectural millwork, decorative fluting, reeding, cove profiles and other applications requiring a smooth concave radius. It can also be used for machining uneven surfaces where minimizing visible transition marks between tool passes is important.
Economical Replaceable Insert Design
Unlike a conventional solid carbide ballnose tool, Series 4096 uses a replaceable carbide insert. When one cutting edge becomes worn, the insert can be rotated to expose a fresh edge.
Because the cutting geometry is determined by the precision insert and tool body, replacing the insert restores the cutting edge without changing the nominal tool diameter or radius.
This makes the Series 4096 an economical choice for repetitive production applications where a solid carbide ballnose bit would otherwise require sharpening or replacement.

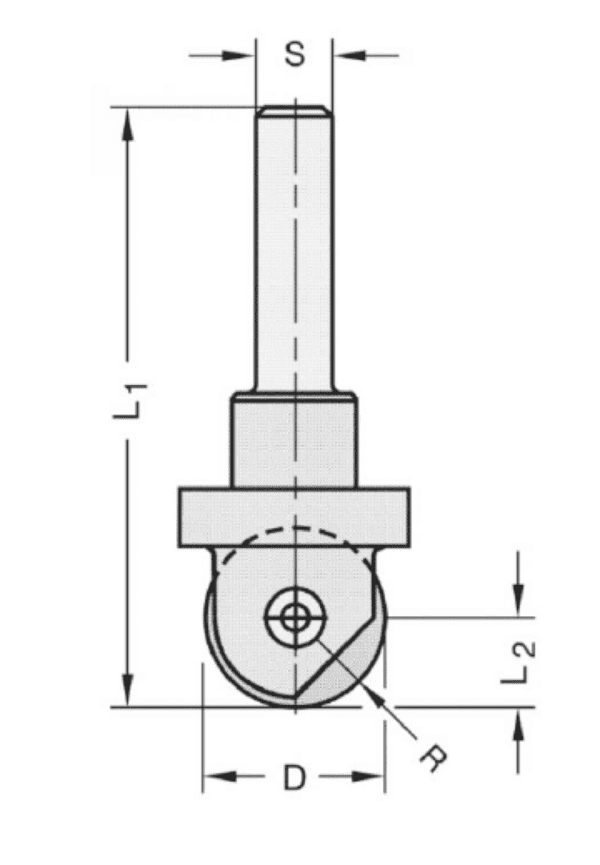

Standard radius options include:
- 1/4″ radius
- 5/16″ radius
- 3/8″ radius
The tool is suitable for machining solid wood, MDF and solid-surface materials.
For smaller radii, intricate contouring or applications better suited to spiral geometry, a solid carbide ballnose router bit may be the preferred choice.
Replacement Parts
Item# 4096.635.00 (1/4” R)
tem# 4096.953.00 (3/8” R)
Item# 39082-0-03565-R M3.5 x 6.5 Replacement Screw
Item# 39077-0-04015-1 Torx Key
