$60.95 – $361.30
As the name implies, a chipbreaker bit is designed to better reduce chip size, particularly when machining plywood to facilitate easy chip evacuation into the dust collector. Tools are RH rotation. Counterclockwise rotation and custom sizes are available on request. Provides clean cut on the top surface. Refer to our chipload calculator for correct feed speeds. For faster feed rates when top surface finish is not critical, refer to Upcut Chipbreakers.
Typical Machining Range:
16,000-18,000 RPM
400-600″/min. (2-Flute)
600-1200″/min. (3-Flute)
For more information see our
Chip Load Calculator

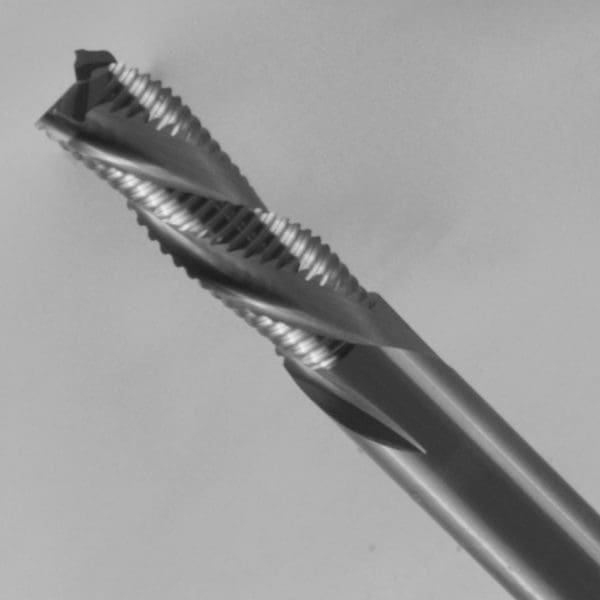

As the name implies, a rougher bit is designed for a rough cutting wood and composite panels with fairly high feed rates. Not recommended when surface finish quality is critical. Tools are RH rotation. Counterclockwise rotation and custom sizes are available on request.
| D | 3/8", 1/2", 5/8", 3/4" |
|---|---|
| CEL | 1*1/4", 1-1/2", 1-5/8", 2, 2-1/2", 3" |
| OAL | 3", 3-1/2", 4", 5", 6" |
| Z | 2, 3 |
| Shank | 3/8", 1/2", 5/8", 3/4" |
