Price range: $29.00 through $351.00

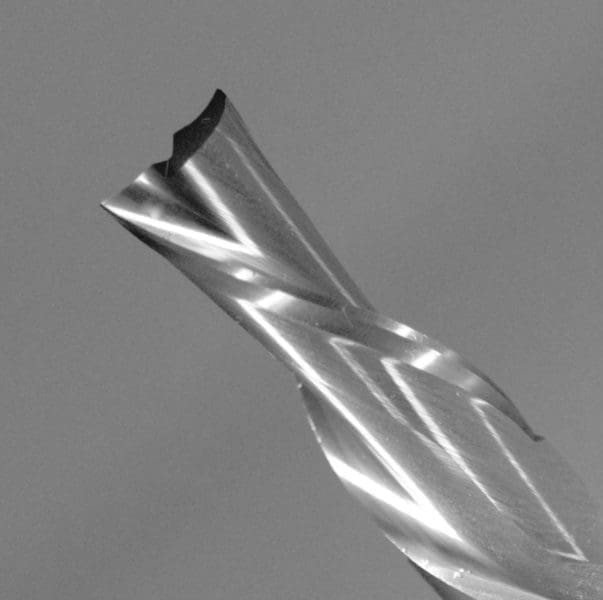

This solid carbide down cut finishing tool is a popular choice for most routing applications. The down shear geometry provides a clean finish on the top surface finish, such as laminate, HPL, painted etc. Great for rebates, grooves and general parting cuts in solid wood and composite panels. When grooving or rebating, use the shortest available cut length to avoid deflection or breakage.
Please refer to our special grade downcut for machining melamine, as well as our 3 flute downcut bits for faster feed speeds.
Tools shown are RH rotation. LH rotation and custom sizes are available on request.
Typical Machining Range:
16,000-18,000 RPM
400-600″/min.
For more information see our
Chip Load Calculator
This solid carbide down cut finishing tool is a popular choice for most routing applications. The down shear effect provides a clean finish on material that has a surface finish, laminate, HPL, painted etc. Great for rebates, grooves and general parting cuts in solid wood, composite panels and plywood. When grooving or rebating, use the shortest available cut length to avoid deflection or breakage. Tools shown are RH rotation. LH available on request.
| D | 1/2", 1/8", 3/16", 3/32", 3/8", 5/32", 7/16", 7/32", 9/32", 1/4", 3/4", 5/16", 5/8" |
|---|---|
| CEL | 1-1/4", 1-1/8", 1/2", 3-1/4", 3", 3/4", 7/8", 7/8"1", 1-1/2", 1-5/8", 1", 2", 3-1/2" |
| OAL | |
| Shank | |
| Application | Straight/Trim/Finish |
| Tool Type | Solid Carbide |
| Product Group | Router Bits |
| Material | MDF/HDF/Particleboard/Chipboard/Hardboard, Melamine, Solid Wood |
| Machine Type | Router/Milling/CNC |
