A ballnose router bit has a rounded cutting tip that is designed to machine curved surfaces, contours and three-dimensional profiles. Ballnose bits are commonly used for 3D carving, mold and pattern work, sculpted surfaces, radius cuts and finish machining on CNC routers and machining centers.
Ballnose Insert Router Bits
In stock
Call for Price
- Performance Guarantee
- Price Match Promise

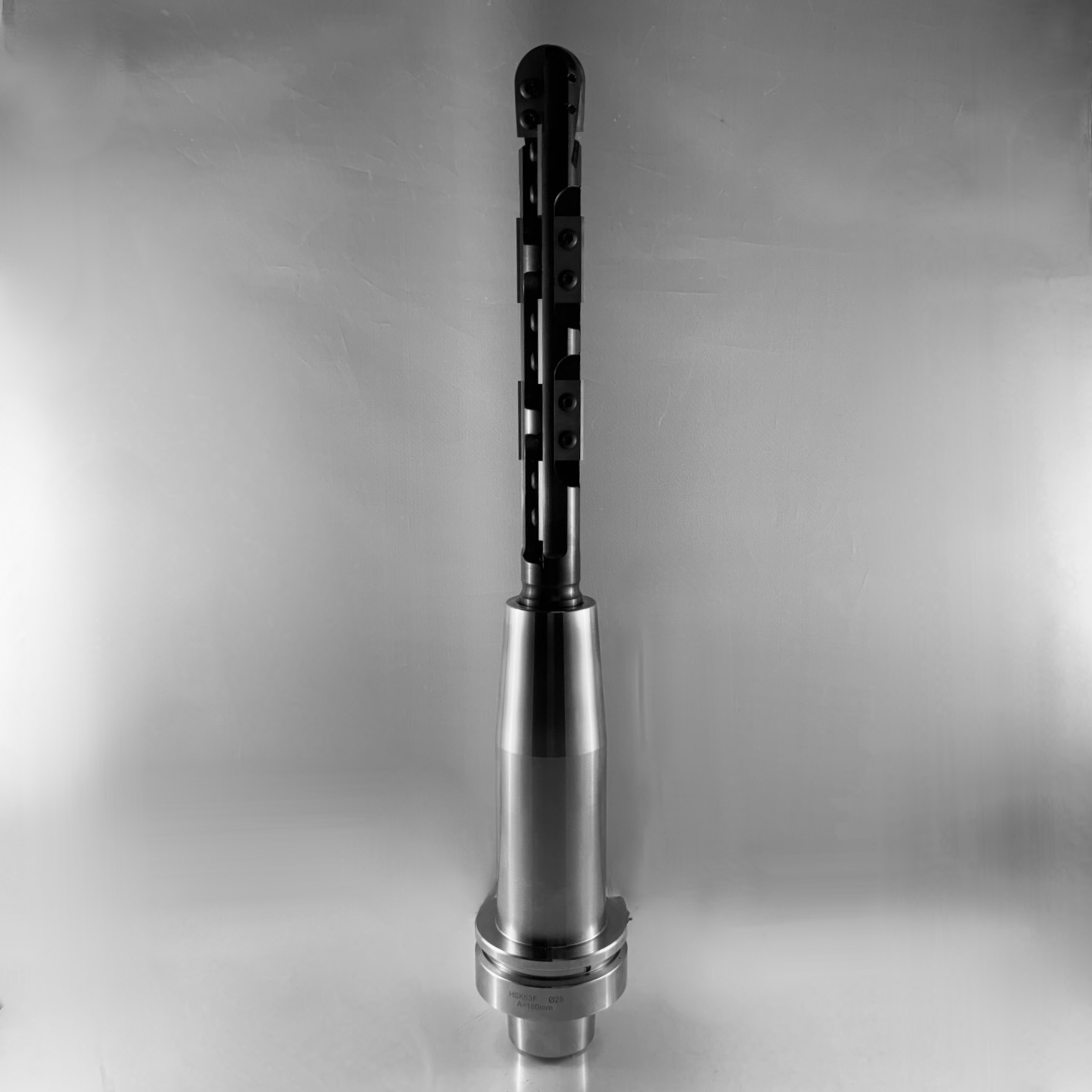

Ballnose insert router bits from GDP Tooling are engineered and manufactured to your exact specifications, with the tool geometry selected for the application, material being machined and desired finished profile. These precision CNC tools are designed for contouring, profiling and machining three-dimensional or uneven surfaces where a smooth, consistent finish is critical.
The radius-tipped, lens-shaped cutting geometry follows curved and irregular surfaces smoothly, producing an exceptionally clean finish while minimizing visible tool paths. Ballnose insert router bits are widely used in boat building and marine manufacturing, as well as pattern and mold making, composites, furniture, architectural millwork and other industries machining large contoured components and complex profiles.
One of their greatest advantages is significant tooling cost savings compared with large-diameter solid carbide ballnose bits. This becomes particularly important in diameters exceeding 1/2 inch, where solid carbide tools can become extremely expensive. With an insert ballnose tool, the precision tool body is retained and only the worn carbide cutting insert is replaced. This dramatically reduces replacement costs while providing consistent cutting geometry and performance.
Custom diameters, radii and cutting configurations can be engineered around your specific material, machine and production requirements.
Have a Question?
Ask about this product
Ballnose Insert Router Bits
Product FAQs
A flat-end bit produces a flat-bottom cut and is typically used for profiling, pocketing and general material removal. A ballnose bit has a rounded cutting end that follows curved and contoured surfaces more smoothly, making it better suited for 3D machining and finishing complex shapes.
Depending on the tool geometry, solid carbide ballnose bits can be used to machine solid wood, MDF, plywood, plastics, composites, fiberglass and certain non-ferrous materials. The correct flute geometry and cutting parameters should always be matched to the specific material.
Yes. Ballnose router bits are widely used for 3D CNC carving because the rounded cutting edge can follow changes in surface height and direction while producing a smooth, contoured finish. Smaller ballnose diameters generally allow greater detail, while larger diameters can machine larger areas more efficiently.
The best diameter depends on the size and detail of the part, required surface finish, machining depth and desired production speed. That said, there are minimum diameters required for an insert tool of about 20mm. Smaller-diameter ballnose bits are useful for fine detail and tight contours, while larger tools can remove material more efficiently and reduce machining time on broader surfaces.
Yes, although the optimum tool may differ for each operation. A larger or more aggressive tool is often used for roughing to remove material efficiently, followed by a smaller ballnose bit for the final finishing pass. This can reduce machining time while still producing a detailed, smooth surface.
Surface finish is affected by tool diameter, stepover, feed rate, spindle speed, tool sharpness and machine rigidity. Reducing the stepover between passes generally produces a smoother finished surface, although it also increases machining time.
Consider the material being machined, required radius or detail, cutting depth, desired surface finish, machine type, spindle speed and feed rate. GDP Tooling can help recommend the appropriate ballnose geometry and cutting parameters for your CNC application.
Both can produce rounded grooves and concave profiles. A solid carbide ballnose tool is particularly versatile for CNC contouring and 3D machining. For repetitive production of certain fixed-radius grooves, an insert-style core box cutter with replaceable cutting edges may be more economical.
Ideal for Machining:
-
Fiberglass panels and enclosures
-
Wood-based materials (MDF, hardwoods, laminated panels)
-
Thermoplastics and thermoset composites
-
Solid surface materials (e.g., Corian®)
-
Carbon fiber or aramid fiber composites
-
Foam and tooling board
-
Non-ferrous materials (in specific applications)
💡 Common Industry Applications:
-
Aerospace and defense manufacturing
-
Marine and automotive fabrication
-
Architectural millwork and furniture production
-
Exhibit, display, and sign making
-
Plastics and composite part machining
-
Industrial pattern and mold making
