Carbide-Tipped Laminate Hollow Face Blade Industrial

In stock

Price range: $217.00 through $322.00

  • Performance Guarantee
  • Price Match Promise

Series 2037, 2038, & 2041

For use on sliding and vertical saws to obtain cleanest cut on double sided laminated material when no scoring blade is engaged.  This special tooth geometry ensures a clean cut on the bottom of the panel.     The 2038 series features a negative hook which is particularly good for mitre cuts, the 2037 is a positive hook hollow face blade, as is the 2041 which features a higher tooth count and a modified hollow face grind.  All 3 versions are popular alternatives to a high-angle ATB blade which all serve the purpose of a clean exit cut on saws without a scoring blade in use.  For use on sliding and vertical saws, this hollow face blade achieves a great finish on double-sided laminated panels without use of scoring blade.  Hollow face blades require special sharpening procedures and need to be face-ground with every re-grind to maintain performance.

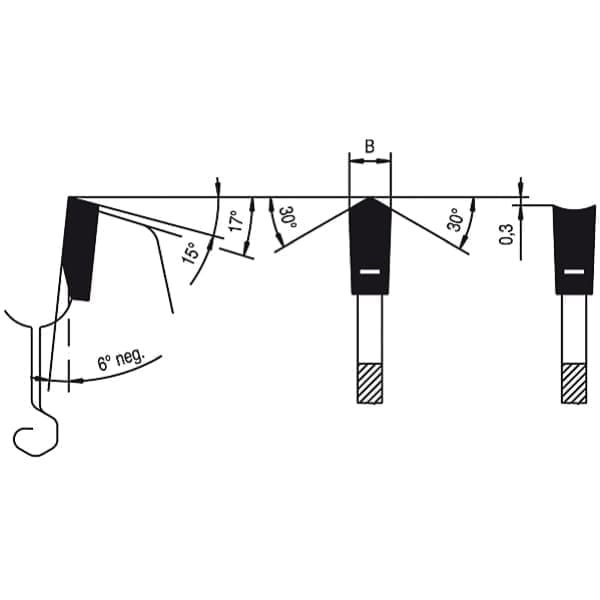

Above line drawing shows the 2037 Series tooth style.  The 2038 Series has the same grind but a negative hook, and the 2041 has a modified hollow face grind  (see gallery images to the left).

Pinhole Legend:
CNL = Combination Pinholes 2/7/42, 2/9/46.4 and 2/10/60
KNL = Combination Pinholes 2/10/60 and 2/7/42

Tooth Styles: (see drawings)
IV HF = Inverted “V” shape / hollow face
HF  = Hollow Face

Available Options:

Description

For use on sliding and vertical saws to obtain cleanest cut on double sided laminated material when no scoring blade is engaged.  This special tooth geometry ensures a clean cut on the bottom of the panel.     The 2038 series features a negative hook which is particularly good for mitre cuts, the 2037 is a positive hook hollow face blade, as is the 2041 which features a higher tooth count and a modified hollow face grind.  All 3 versions are popular alternatives to a high-angle ATB blade which all serve the purpose of a clean exit cut on saws without a scoring blade in use.  For use on sliding and vertical saws, this hollow face blade achieves a great finish on double-sided laminated panels without use of scoring blade.  Hollow face blades require special sharpening procedures and need to be face-ground with every re-grind to maintain performance.

Additional information

Diameter

220mm, 250mm, 350mm, 400mm

Kerf

2.0mm, 3.0mm, 3.5mm

Plate

2.0mm, 2.2mm, 2.5mm

Bore

Pinholes

Z

, , , , ,

Tooth Style

Tool Type

Carbide-Tipped

Product Group

Saw & Grooving Blades

Material

MDF/HDF/Particleboard/Chipboard/Hardboard

Machine Type

Saw (Sliding, Vertical)
