HSK-F 63 CNC Arbor Adapter For Saw Blades Up To 16″ Diameter

$681.00$1,252.00

Tempered saw blade clamping flange consisting of HSK Arbor/flange assembly in HSK63F execution and 8 countersunk screws to affix saw blade for a flush-bottom mount. Optional counter flange with 8 socket head cap screws available. Use for sawing on CNC Machining Centers with saw blades up to a diameter of 16″. For sawblades that can be modified to fit this flange, please go to our corresponding saw blade selection here.

(6373.107.00/6373.107.10 correspond with SCM 29L0392772E)

Made in Germany

Also available for machines utilizing SK30, SK40, or HSK-E



Available Options:

Description

Tempered saw blade clamping flange consisting of HSK Arbor/flange assembly in HSK63F execution and 8 countersunk screws to affix saw blade for a flush-bottom mount.   Optional counter flange with 8 socket head cap screws available. Use for sawing on CNC Machining Centers with saw blades up to a diameter of 16″.

Made in Germany



Additional information

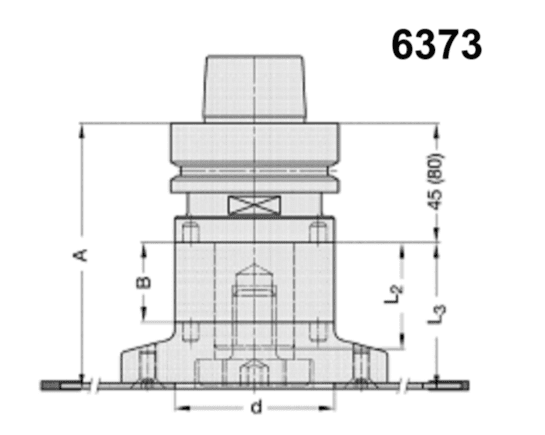

d

30mm

Dia

106mm

A

40mm, 50mm

TK

90mm

Style

With Counter Flange, Without Counter Flange

Product Group

Adapters / Flanges

Machine Type

Router/Milling/CNC
