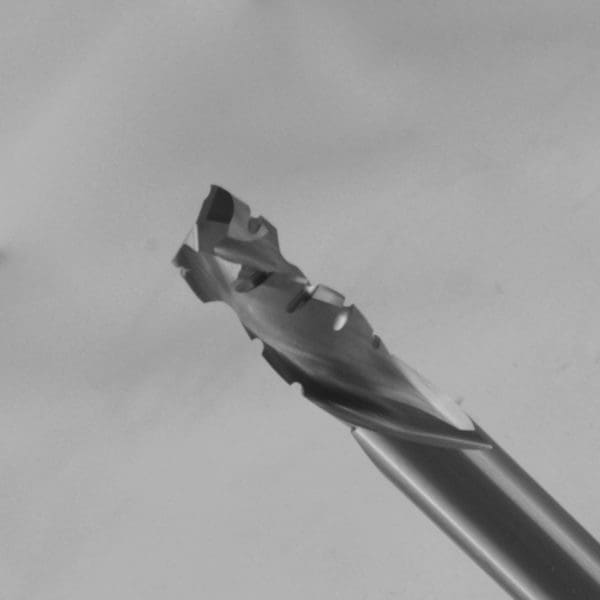

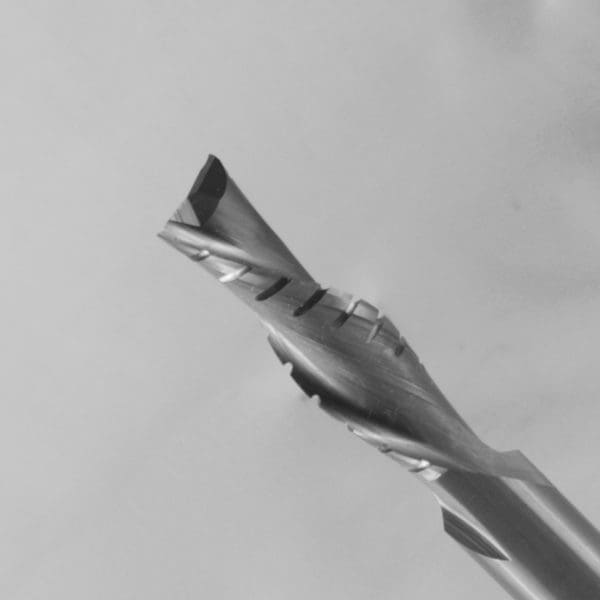

CHIPBREAKER UPCUT

$71.10 – $360.65

As the name implies, a chipbreaker bit is designed to better reduce chip size, particularly when machining plywood, OSB and similarly structured materials to facilitate easy chip flow out of the cut and into the dust evacuation vents. Provides clean cut on the bottom surface. If top surface quality is critical, a downcut chipbreaker is a better option. Tools are RH rotation. Counterclockwise rotation and custom sizes are available on request.

Typical Machining Range:
16,000-18,000 RPM
400-600″/min. (2-Flute)
600-1200″/min. (3-Flute)
For more information see our
Chip Load Calculator

SKU: N/A Category: CHIPBREAKER BITS

Description

As the name implies, a chipbreaker bit is designed for a rough cut with fairly fast feed rates. Not recommended for a finish cut. Tools shown are RH rotation. LH is available on request.

Additional information

D	1/2", 3/8", 3/4", 5/8"
CEL	1-1/4", 2-1/8", 3", 1-1/2", 1-5/8", 2-1/2", 2"
Flutes	2, 3
OAL	3", 3-1/2", 4", 6"
Shank	1/2", 3/4", 3/8", 5/8"
