Description
Series 6245

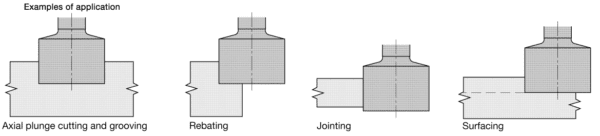

The 6245 Series Insert Surface Planer is designed for use in a variety of applications in addition to surface planing. The unique insert design makes this a great cutter for rebating, jointing and grooving up to 35mm in addition to surfacing in solid wood, panels and composites. With two reversible tips cutting on the periphery and two center tips for plunge and bottom cutting, routing a large gullet area becomes easy as the body design provides optimal chip removal. For axial plunge cutting operations exceeding 10mm, the spindle speed should be reduced to 12,000 RPM.
Reduce your tooling inventory and tooling cost substantially while improving efficiencies with a tool that offers a constant cutting diameter, economical inserts, rigid tool body construction and provides an excellent finish result!
Replacement Parts:
4200.012.00 (peripheral insert for 80mm diameter tool, plunge insert for 35 and 40mm diameter tools)
4200.020.00 (plunge insert for 60mm diameter tool)
4200.030.00 (plunge insert for 80mm diameter tool)
6419.030.00 (peripheral cut insert for 35, 40 and 60mm diameter tools)
39076-0-04000-R Replacement screw
39077-0-04015-2 T-15 Wrench
