Tool Styles for Carbide-tipped Panel Saw Scoring Blades

SCORING SAW BLADES

$141.10 – $319.15

Series 2055

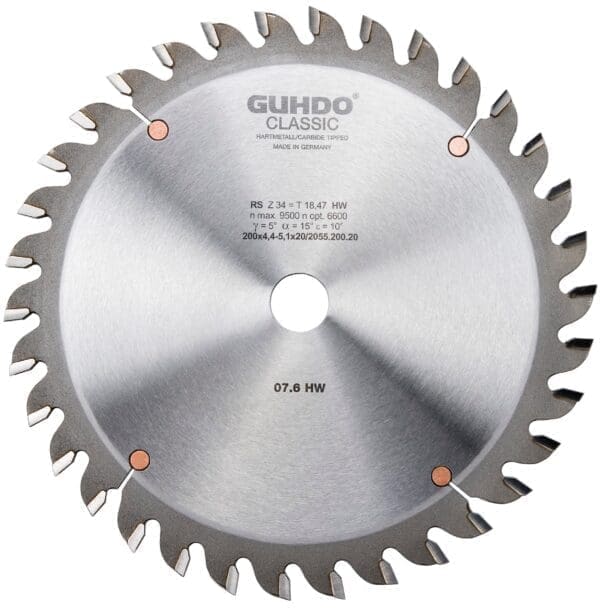

Scoring saw blades for panel saws and beam saws. Recommended for use when cutting single or multiple sheets, this blade will prevent tear-out on the exit cut of the panel.

Left to right: Conic Alternate (K/W), Adjustable (V), Flat (F),

Tooth Style abbreviations:
V = Adjustable…this style is only on 2 pc adjustable blade sets
K = Conic tooth
K/W = Conic/Alternate
W = Alternate top grind
F = Flat top grind

SKU: N/A Categories: BLADES FOR SLIDERS, PANEL/BEAM SAWS

Description

Scoring saw blades for panel saws and beam saws. Recommended for use when cutting single or multiple panels. The scoring blade precuts the path in the opposite direction that the main blade will exit the material from, and thus will prevent tear-out. Main blade and scoring blade must have the same kerf to guarantee a chip-free cut.

Tooth Style abbreviations:
V = Adjustable…this style is only on 2 pc adjustable blade sets
K = Conic tooth
K/W = Conic/Alternate
W = Alternate top grind

Additional information

Diameter	100mm, 120mm, 125mm, 127mm, 150mm, 160mm, 180mm, 200mm, 215mm, 220mm, 300mm, 340mm, 80mm
Kerf	2.8-3.6mm, 3.0-3.7mm, 3.10mm, 3.2-3.8mm, 3.2-3.9mm, 3.2-4.5mm, 4.4-5.1mm, 4.6-5.3mm, 4.8-5.5mm, 4.90mm, 5.0-5.7mm, 5.00mm, 5.2-5.9mm, 5.8-6.5mm, 6.4-7.4mm
Plate	–, 2.0mm, 2.2mm, 2.4mm, 2.5mm, 3.2mm, 3.5mm, 4.4mm
Bore	20mm, 22mm, 35mm, 45mm, 55mm, 57mm, 65mm, 80mm
Z	108, 10×2, 12, 12×2, 16, 20, 24, 28, 30, 34, 36, 42, 48, 60, 72
Tooth Style	K, K/W, V, W
