Insert Grooving Cutter
Fixed Width Grooving Blade

GROOVING CUTTER (FIXED WIDTH)

Call for Price

Series 4-551 (4-6mm) and 4-518 (>8mm)

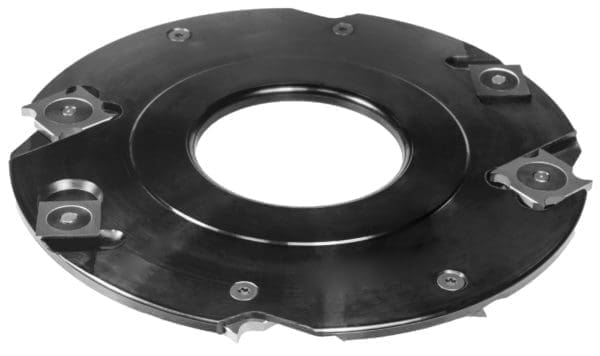

Our standard fixed width grooving tools are constructed with a sturdy steel body featuring 4 grooving inserts and 2 spurs each side for clean inside groove corners.  This tool is great for grooving and rebates in solid wood and wood composites.  Standard width sizes come in the following metric sizes:  4mm, 5mm, 6mm, 8mm, 10mm, 12mm and 15mm, with a maximum groove depth of 32mm.  Standard tool diameter is 140mm.  Bore size as needed.

Special sizes are routinely manufactured with a 4 week lead time and can be made with more inserts and different diameter and kerf requirements as needed.  For more information, or to obtain a price quote, please contact us.

Category:

Description

Series 4010
The 4010 Series is constructed of a steel body with 4 grooving inserts and 2 spurs each side for clean inside groove bottom.  This tool is extremely cost-effective for grooving and rebates in solid wood and composites.
