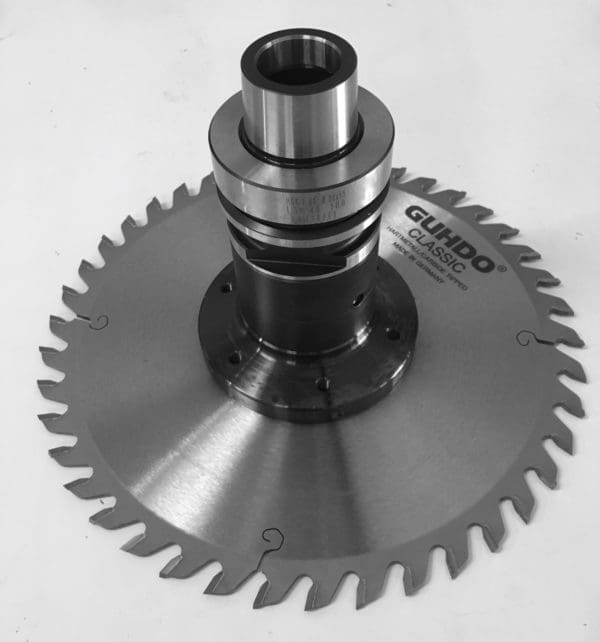

Saw Blade mounted on HSK Arbor Adapter for CNC Machining

ARBOR ADAPTER FOR SAW BLADES UP TO 14″

$1,057.90 – $1,090.65

Tempered saw blade clamping flange consisting of HSK Arbor/flange assembly in HSK63F execution and 8 countersunk screws to affix saw blade for a flush-bottom mount. Optional counter flange with 8 socket head cap screws available. Use for sawing on CNC Machining Centers with saw blades up to a diameter of 14″.
For sawblades that can be modified to fit this flange, please go to our corresponding saw blade selection here.

Made in Germany
Also available for machines utilizing SK30, SK40, or HSK-E

SKU: N/A Category: SAW BLADE ADAPTERS

Description

Two-piece saw blade arbor/flange assembly for mounting saw blades for horizontal sawing on CNC machines.
Maximum blade diameter is 14″.
Available for machines utilizing HSK-F63, SK30, SK40, or HSK-E

Made in Germany

Additional information

A	100mm, 115mm, 140mm
L2	40mm, 55m, 80mm
B	30mm, 45mm, 75mm
L3	55mm, 70mm, 95mm
Style	HSK63-F
