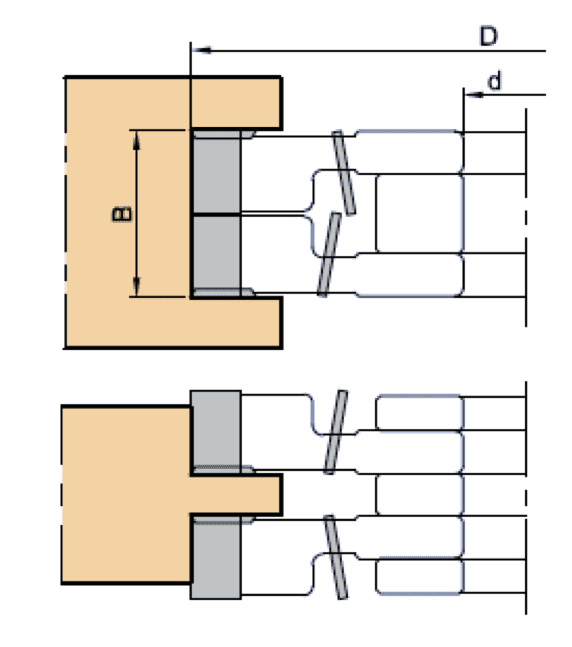

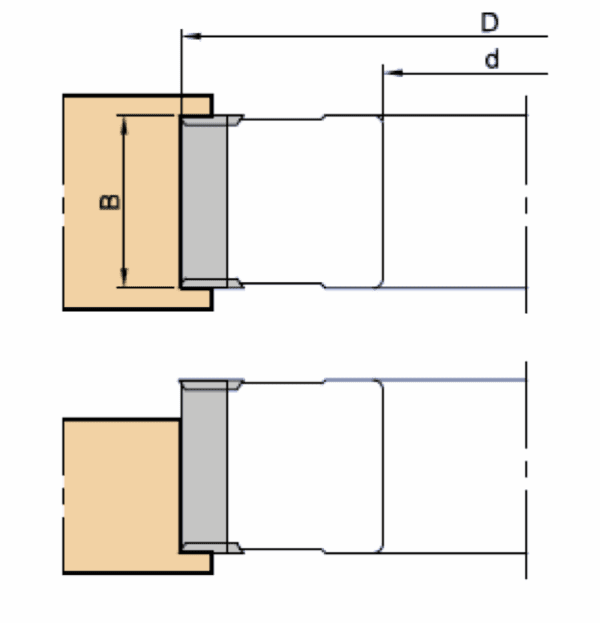

Series 4513 and 4530

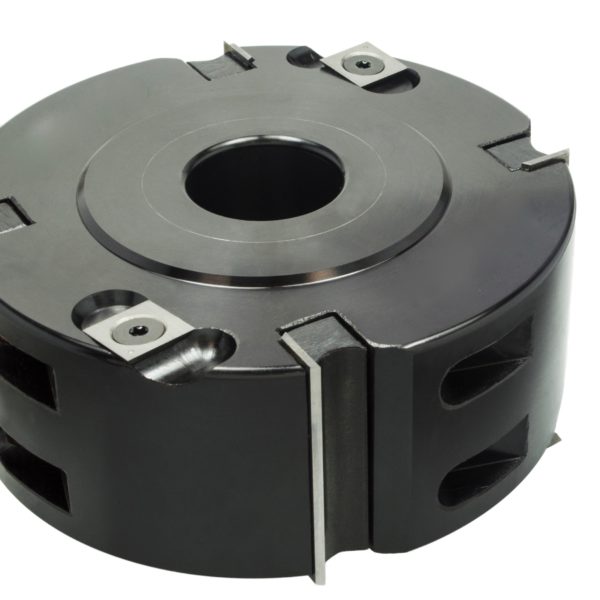

Jointing and rebating insert cutter heads made with steel tool body and solid carbide, reversible insert knives. Solid carbide 4-sided spurs top and bottom assure clean corners in rebate cut corners. Suitable for use on all solid wood and wood composite products.

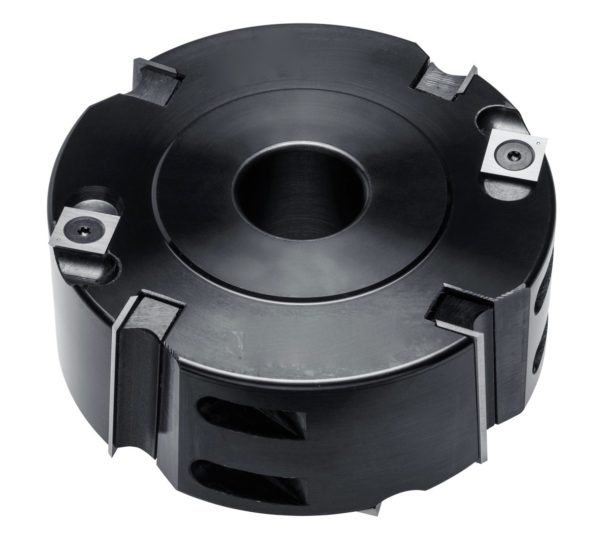

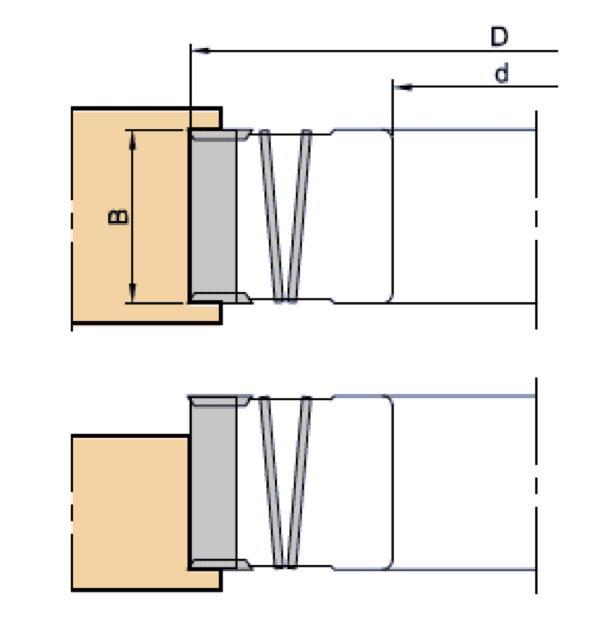

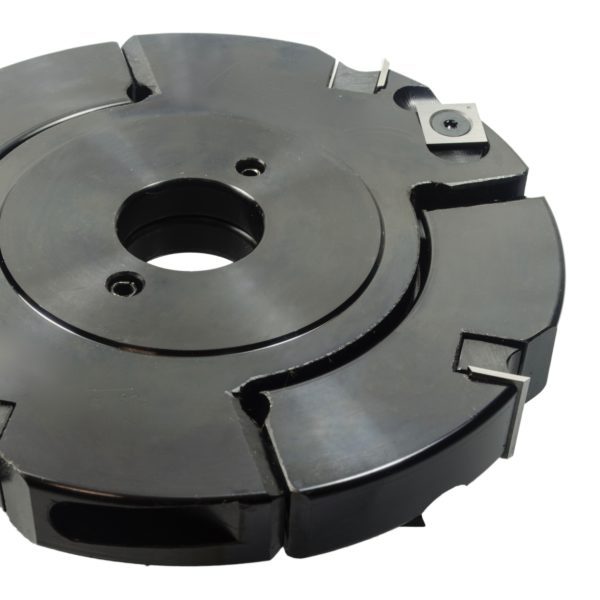

Manual or automatic feed suitability. Available axial straight cutting edges (4513 & 4530) or with opposite shear (4536) for materials susceptible to fraying or chipping. An adjustable version is also available. For more information, or to get a quote, please contact us.
| Application | Dados / Rebates / Grooves, Straight/Trim/Finish |
|---|---|
| Tool Type | Carbide or PCD Insert |
| Product Group | Cutter Heads |
| Material | MDF/HDF/Particleboard/Chipboard/Hardboard, Solid Wood |
| Machine Type | Moulder/Tenoner, Shaper |
