Carbide Tipped V-Point Drill Bit for Through Holes without Blowout on the exit cut

V-POINT BIT – 70MM LONG

$15.60 – $52.00

Carbide tipped V-point (thru hole) drill for use in cabinet and closet construction. The shank features a height adjustment screw and a landed flat for set screw tightening. The V-Point geometry prevents edge blowout when the bit exits material on the bottom. Special Sizes available on request. If using this bit in a toolholder / collet setup, please refer to this information for proper mounting.

SKU: N/A Category: V-POINT BITS Tag: featured

Description

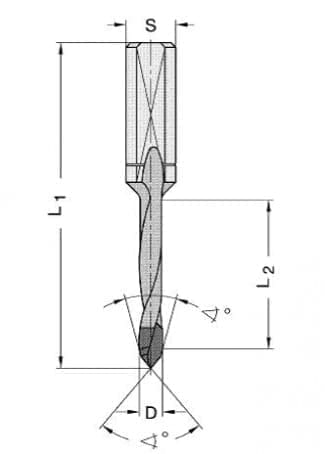

Through Hole Drill bit designed to eliminate tear-out on the exit cut. Shank Diameter is 10mm with flat.

Additional information

Diameter	1/2", 1/4", 10.2mm, 10mm, 15mm, 3/16", 3/8", 4mm, 5.1mm, 5.5mm, 6mm, 7/16", 7/32", 7mm, 8.5mm, 8mm
L1	70mm
L2	35mm
Rotation	LH, RH
