Price range: $784.00 through $1,440.00
Tempered saw blade clamping flange consisting of HSK Arbor/flange assembly in HSK63F execution and 8 countersunk screws to affix saw blade for a flush-bottom mount. Optional counter flange with 8 socket head cap screws available. Use for sawing on CNC Machining Centers with saw blades up to a diameter of 16″. For sawblades that can be modified to fit this flange, please go to our corresponding saw blade selection here.
(6373.107.00/6373.107.10 correspond with SCM 29L0392772E)
Also available for machines utilizing SK30, SK40, or HSK-E
Tempered saw blade clamping flange consisting of HSK Arbor/flange assembly in HSK63F execution and 8 countersunk screws to affix saw blade for a flush-bottom mount. Optional counter flange with 8 socket head cap screws available. Use for sawing on CNC Machining Centers with saw blades up to a diameter of 16″.
Made in Germany

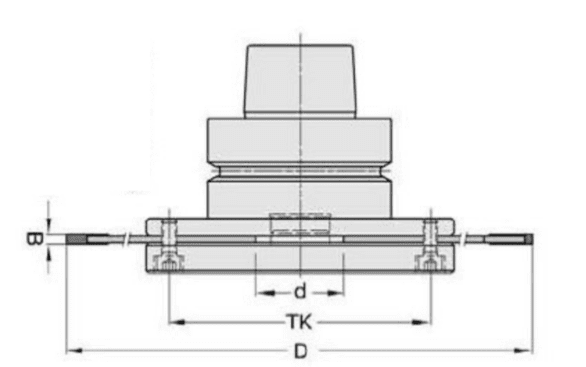

| d | 30mm |
|---|---|
| Dia | 106mm |
| A | 40mm, 50mm |
| TK | 90mm |
| Style | With Counter Flange, Without Counter Flange |
| Product Group | Adapters / Flanges |
| Machine Type | Router/Milling/CNC |
