Description
For sizing non-ferrous metal and plastic profiles and sizing non-ferrous metal sheets.

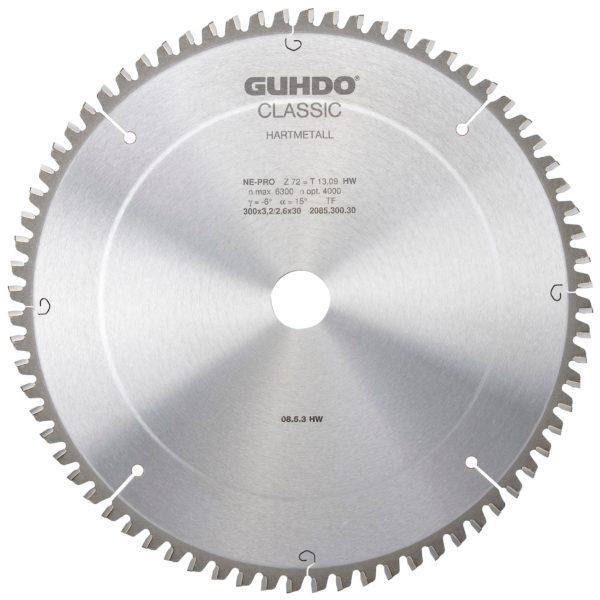

Carbide Negative Hook Blade-Non-Ferrous Industrial
Price range: $217.00 through $614.00
Series 2085
Carbide-tipped saw blade for sizing non-ferrous metal and plastic profiles and sizing non-ferrous metal sheets on machines such as Elumatec, Haffner, Makita, DeWalt, Oliver etc.
Pinhole Legend:
CNL = Combination Pinholes 2/7/42, 2/9/46.4 and 2/10/60
KNL = Combination Pinholes 2/10/60 and 2/7/42

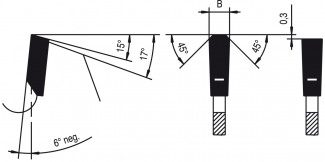

Tooth Style:
Negative Hook Triple Chip Grind
Available Options:
Additional information
| Diameter | 160mm, 190mm, 216mm, 220mm, 250mm, 300mm, 400mm, 450mm, 500mm |
|---|---|
| Kerf | 2.8mm, 3.0mm, 3.1mm, 3.8mm, 4.1mm |
| Plate | 2.0mm, 2.2mm, 2.5mm, 2.6mm, 3.2mm, 3.5mm |
| Bore | |
| Pinholes | –, =, 4/12/64 2/9/55, KNL |
| Z | |
| Tooth Style | |
| Tool Type | Carbide-Tipped |
| Product Group | Saw & Grooving Blades |
| Material | Non-Ferrous, Plywood |
| Machine Type | Saw (Panel/Beam), Saw (Sliding, Vertical) |
